Joy Tech Diamond Cutting Tool Concrete Floor Grinding Wheel Abrasive Tooling 3 Inch Metal Bond Diamond Grinding Disc with 4 Segments (JOY-TP3-B4)

Joy Tech Diamond Cutting Tool Concrete Floor Grinding Wheel Abrasive Tooling 3 Inch Metal Bond Diamond Grinding Disc with 4 Segments (JOY-TP3-B4)

Overview Package size per unit product 35.00cm * 35.00cm * 35.00cm Gross weight per unit product 1.000kg Product Descrip;
Basic Info
Model NO. JOY-TP3-B4
Bond Very Soft, Soft, Medium Bond, Hard, Very Hard
Grit Available 6# 16# 20# 30# 60# 80# 100# 150# 200# 400# etc.
Color Black, White, Blue, Red, Gold, Silver, and Customi
Material Metal Bond + Diamond
Application Machine1 Husqvarna-Lavina, Sti, Prepmaster, Stonekor Grinde
Application Machine2 HTC, Terrco, Blastrac, Blastpro, Diamapro Grinder
Application Machine3 Terrco, Microban, Ameripolish, Sase Grinder Plate
Application Machine4 Spe Cps, Diamatic, Bartell, Scanmaskin, Schwamborn
Application Machine5 Klindex, Edco, Werkmaster, Airtec Grinder Plate
Advantage Fast Grinding Long Working Life, Stable Perform
Usage Stone, Concrete, Glass, Ceramics, Steel, Synth
Certification CE, ISO9001, ISO2000, SGS, MPa
Sample Production Time 7 Days
Shipping by Air, Sea Freight, Express
Manufacturing Experience Over 18 Years Diamond Tool Manufacture Experience
Transport Package Carton Box, Color Box, White Box, Double Blister,
Specification OEM ODM Customized
Trademark JOY
Origin China
HS Code 6804219000
Production Capacity 30000 PCS/ Month
Packaging & Delivery
Package size per unit product 35.00cm * 35.00cm * 35.00cm Gross weight per unit product 1.000kg
Product Description

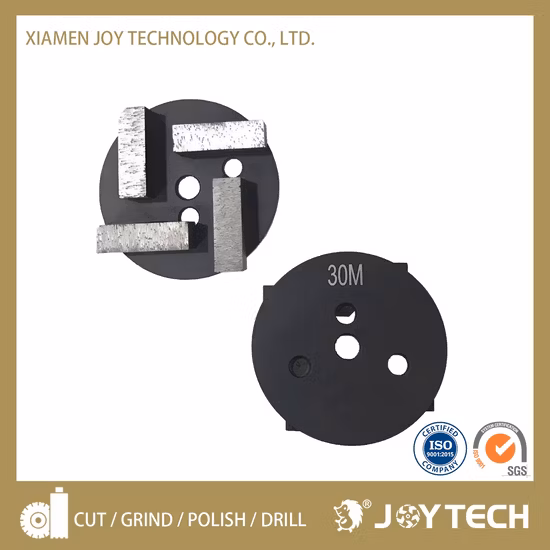

3'' Metal Bond Diamond Grinding Disc with 4 Segments ( Concrete Grinding Diamond Tool TP3-B4)

Grit Available: 6#, 16#, 30/40#, 60/80#, 100/120#, 150#, 200#.

Bond Type Available: soft bond, medium bond, hard bond

Grinder: Terrco Floor Grinder

Size: 3''/80mm

Connection Available: M6, 9mm holes

Bond Type Available: soft bond for hard concrete, medium bond for medium concrete, hard bond for soft concrete.

Features:

1. Efficient,stock removal for improve labor production while reducing tooling cost

2. More than just a great price, a consistent performer with very impressive durability

3. Double rectangular segments also removed lippage and light adhesives and coatings

4. Resurfaces damaged floors to produce a superior concrete surface ready for polishing, coating or sealing

5. Different bond types and various diamond grit sizes available

redi lock diamonds, concrete diamond tools, diamond grinding segment

diamond tools, concrete floor grinding, concrete coating tools

Terrco diamond plug, diamond grinding tools

Terrco diamond plug tools, diamond grinding disc, Metal Bonds Diamond

Terrco plug tooling, diamond grinding segment, Beveled Edge Discs

metal bond diamond toolings, diamond grinding disc, concrete floor polishing

Detailed Photos

Joy Tech Diamond Cutting Tool Concrete Floor Grinding Wheel Abrasive Tooling 3 Inch Metal Bond Diamond Grinding Disc with 4 Segments (JOY-TP3-B4)

Joy Tech Diamond Cutting Tool Concrete Floor Grinding Wheel Abrasive Tooling 3 Inch Metal Bond Diamond Grinding Disc with 4 Segments (JOY-TP3-B4)

Joy Tech Diamond Cutting Tool Concrete Floor Grinding Wheel Abrasive Tooling 3 Inch Metal Bond Diamond Grinding Disc with 4 Segments (JOY-TP3-B4)

Joy Tech Diamond Cutting Tool Concrete Floor Grinding Wheel Abrasive Tooling 3 Inch Metal Bond Diamond Grinding Disc with 4 Segments (JOY-TP3-B4)

Product Parameters

Specifications:

1. Grit available: 6#, 16#, 30/40#, 60/80#, 100/120#.

2. Bond Type Available: soft bond, medium bond, hard bond.

A. Extra Soft Bond - For Very Hard Concrete

B. Soft Bond - For Hard Concrete. Bonds needs to be soft to expose diamond crystals to grind the hard surface. Hard concrete contains hard granite, quartz, river stone, flint rock.

C. Medium Strength Bond - Suggested in most cases, most popular and most common bond used. For use on floors containing common pit gravel and/or medium river stone, traprock, crushed gravel. The Soft and Hard Bonds are typically reserved for extreme ( uncommon) cases.

D. Hard Bond - For Soft Concrete. Bond has harder metals in its matrix to withstand the abrasion, so the diamond crystals are not kicked-out before they have a chance to work the surface. Soft concrete contains limestone, sandstone, dolmite, soft shell.

3. Most Consistent, Highest Quality

4. Wet or Dry use

Our Advantages

Company Profile

Application Machine:

Husqvarna-, Lavina,STI ,Prepmaster, Stonekor, HTC, TERRCO, Blastrac, BlastPro, DiamaPro, TERRCO, Microban, Ameripolish, SASE, SPE CPS, Diamatic, Bartell, Scanmaskin, Schwamborn, Klindex, EDCO, Werkmaster, Airtec grinder
